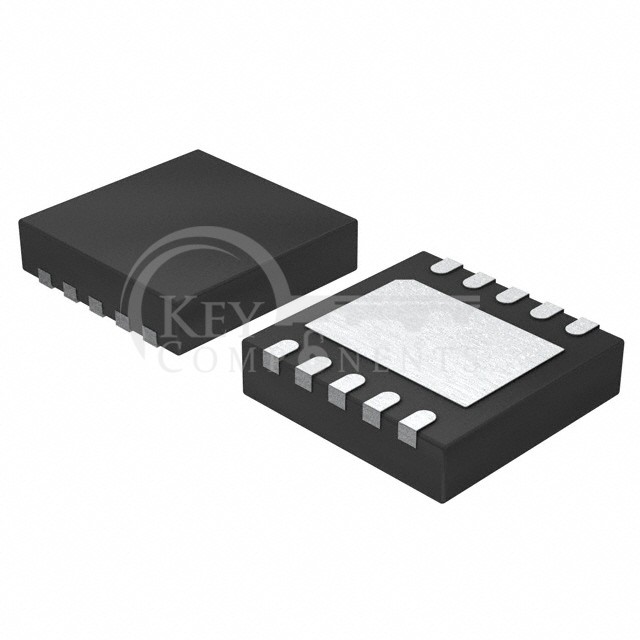

FAN8811TMPX
| Manufacturer Part | FAN8811TMPX |
|---|---|
| Manufacturer | onsemi |
| Description | IC GATE DRVR HALF-BRIDGE 10MLP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Driven Configuration: | Half-Bridge |
| Channel Type: | Independent |
| Number of Drivers: | 2 |
| Gate Type: | N-Channel MOSFET |
| Voltage - Supply: | 8V ~ 16V |
| Logic Voltage - VIL, VIH: | 1.3V, 2.5V |
| Current - Peak Output (Source, Sink): | 3A, 6A |
| Input Type: | Non-Inverting |
| High Side Voltage - Max (Bootstrap): | 118 V |
| Rise / Fall Time (Typ): | 6ns, 4ns |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 10-WDFN Exposed Pad |
| Supplier Device Package: | 10-MLP (4x4) |
