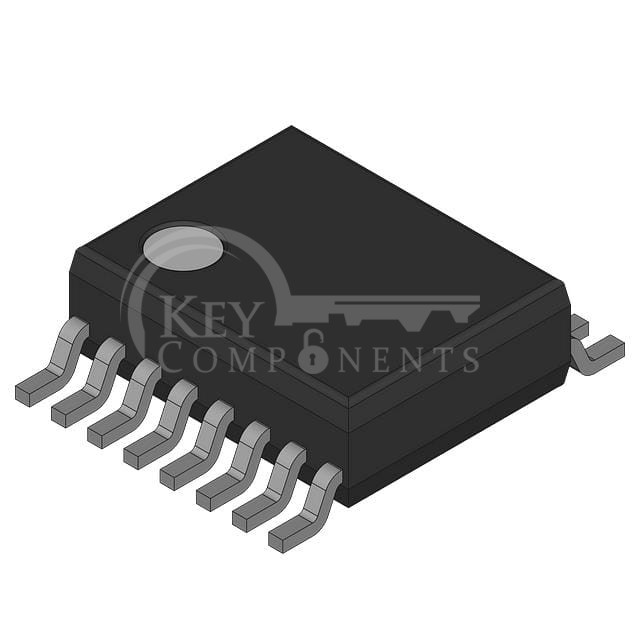

LV5769VZ-TLM-E
| Manufacturer Part | LV5769VZ-TLM-E |
|---|---|
| Manufacturer | onsemi |
| Description | IC REG CTRLR BUCK 16SSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Output Type: | Transistor Driver |
| Function: | Step-Down |
| Output Configuration: | Positive |
| Topology: | Buck |
| Number of Outputs: | 1 |
| Output Phases: | 1 |
| Voltage - Supply (Vcc/Vdd): | 8.5V ~ 42V |
| Frequency - Switching: | 80kHz ~ 500kHz |
| Duty Cycle (Max): | 90% |
| Synchronous Rectifier: | Yes |
| Clock Sync: | No |
| Serial Interfaces: | - |
| Control Features: | Current Limit, Enable, Frequency Control, Soft Start |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 16-LSSOP (0.173", 4.40mm Width) |
| Supplier Device Package: | 16-SSOP |
