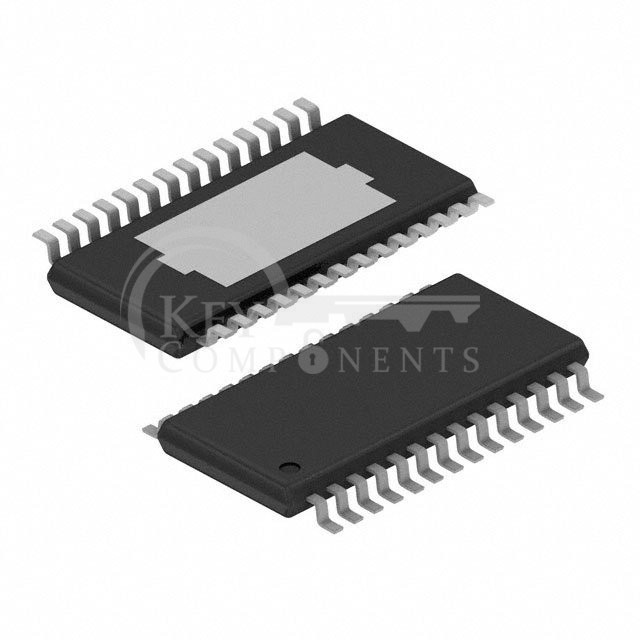

LM5176PWPT

Type	Description
Product Status:	Active
Output Type:	Transistor Driver
Function:	Step-Up/Step-Down
Output Configuration:	Positive
Topology:	Buck-Boost
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	4.2V ~ 55V
Frequency - Switching:	100kHz ~ 600kHz
Duty Cycle (Max):	100%
Synchronous Rectifier:	Yes
Clock Sync:	Yes
Serial Interfaces:	-
Control Features:	Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	28-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package:	28-HTSSOP
