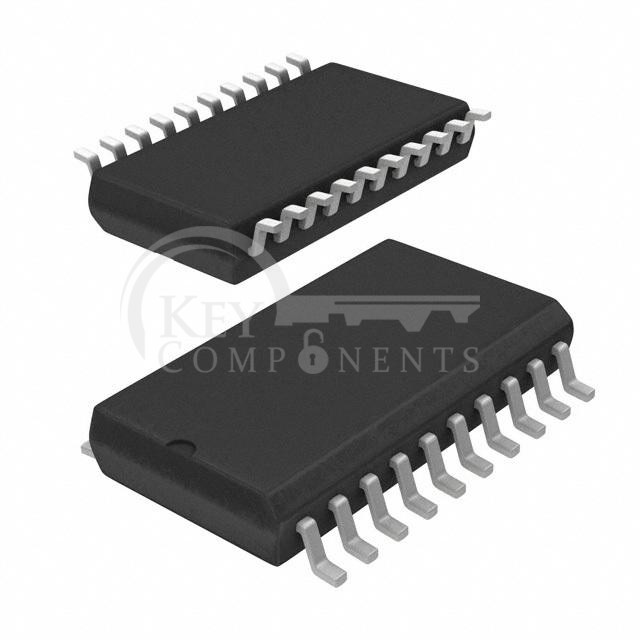

HIP4080AIBZ
| Manufacturer Part | HIP4080AIBZ |
|---|---|
| Manufacturer | Renesas Electronics America Inc |
| Description | IC GATE DRVR HALF-BRIDGE 20SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Driven Configuration: | Half-Bridge |
| Channel Type: | Synchronous |
| Number of Drivers: | 4 |
| Gate Type: | N-Channel MOSFET |
| Voltage - Supply: | 9.5V ~ 15V |
| Logic Voltage - VIL, VIH: | 1V, 2.5V |
| Current - Peak Output (Source, Sink): | 2.6A, 2.4A |
| Input Type: | Non-Inverting |
| High Side Voltage - Max (Bootstrap): | 95 V |
| Rise / Fall Time (Typ): | 10ns, 10ns |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 20-SOIC |
