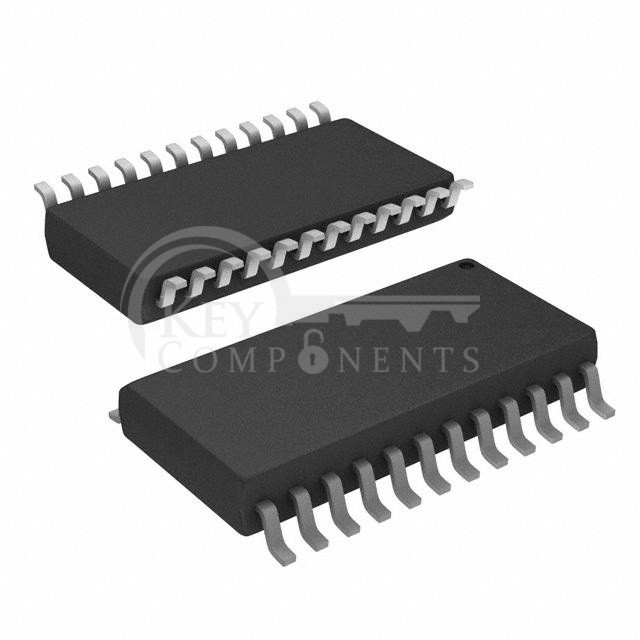

HIP4086ABZ

Manufacturer Part	HIP4086ABZ
Manufacturer	Renesas Electronics America Inc
Description	IC GATE DRVR HALF-BRIDGE 24SOIC
Category	Integrated Circuits (ICs)
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Driven Configuration:	Half-Bridge
Channel Type:	3-Phase
Number of Drivers:	6
Gate Type:	N-Channel MOSFET
Voltage - Supply:	7V ~ 15V
Logic Voltage - VIL, VIH:	1V, 2.5V
Current - Peak Output (Source, Sink):	500mA, 500mA
Input Type:	Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap):	95 V
Rise / Fall Time (Typ):	20ns, 10ns
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	24-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	24-SOIC
