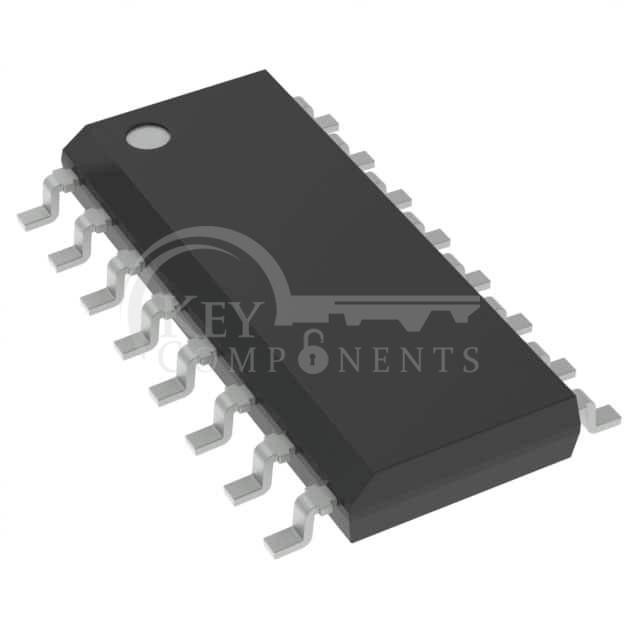

SG2525AP
| Manufacturer Part | SG2525AP |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC REG CTRLR BCK/PSH-PULL 16SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Type: | Transistor Driver |
| Function: | Step-Down, Step-Up/Step-Down |
| Output Configuration: | Positive |
| Topology: | Buck, Push-Pull |
| Number of Outputs: | 2 |
| Output Phases: | 1 |
| Voltage - Supply (Vcc/Vdd): | 8V ~ 35V |
| Frequency - Switching: | 100Hz ~ 400kHz |
| Duty Cycle (Max): | 49% |
| Synchronous Rectifier: | Yes |
| Clock Sync: | Yes |
| Serial Interfaces: | - |
| Control Features: | Enable, Soft Start |
| Operating Temperature: | -25°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 16-SO |
