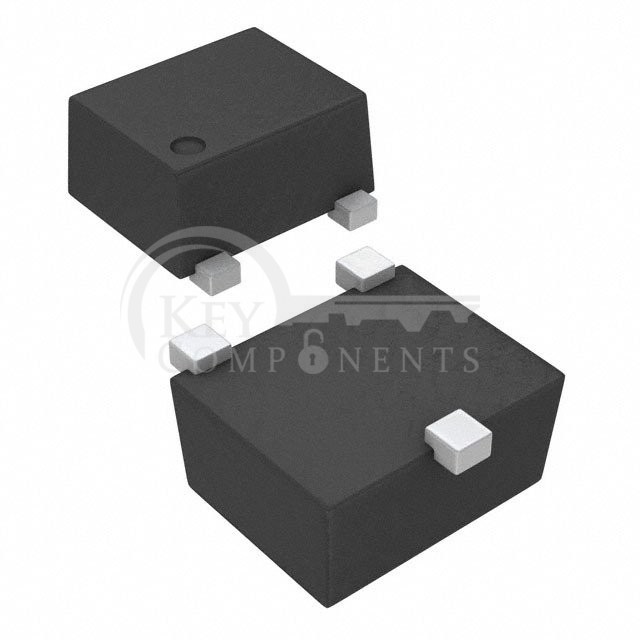

TPD2EUSB30ADRTR
| Manufacturer Part | TPD2EUSB30ADRTR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | TVS DIODE 3.6VWM 8VC SOT9X3 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Steering (Rail to Rail) |
| Unidirectional Channels: | 2 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 3.6V (Max) |
| Voltage - Breakdown (Min): | 4.5V |
| Voltage - Clamping (Max) @ Ipp: | 8V |
| Current - Peak Pulse (10/1000µs): | 1A (8/20µs) |
| Power - Peak Pulse: | 45W |
| Power Line Protection: | Yes |
| Applications: | General Purpose |
| Capacitance @ Frequency: | - |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 3-SMD, SOT-23-3 Variant |
| Supplier Device Package: | SOT-3 |
