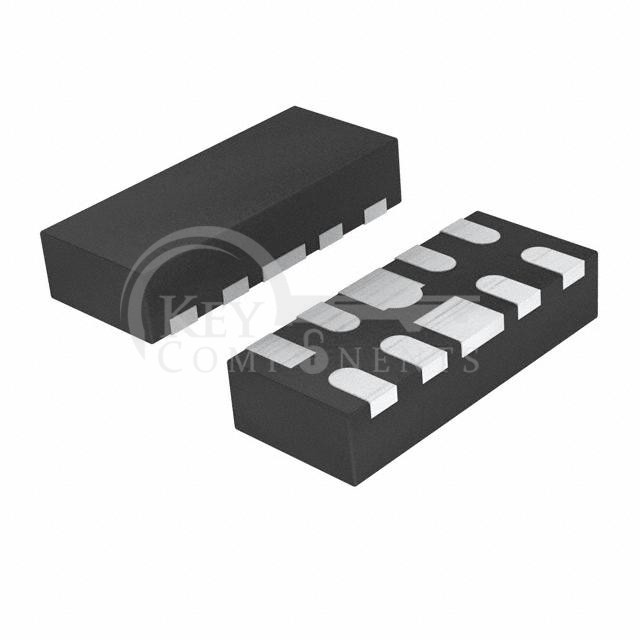

TPD4E02B04QDQARQ1
| Manufacturer Part | TPD4E02B04QDQARQ1 |
|---|---|
| Manufacturer | Texas Instruments |
| Description | TVS DIODE 3.6VWM 8.8VC 10USON |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | - |
| Bidirectional Channels: | 4 |
| Voltage - Reverse Standoff (Typ): | 3.6V (Max) |
| Voltage - Breakdown (Min): | 5.5V |
| Voltage - Clamping (Max) @ Ipp: | 8.8V |
| Current - Peak Pulse (10/1000µs): | 2A (8/20µs) |
| Power - Peak Pulse: | 17W |
| Power Line Protection: | No |
| Applications: | Automotive |
| Capacitance @ Frequency: | 0.25pF @ 1MHz |
| Operating Temperature: | -40°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 10-UFDFN |
| Supplier Device Package: | 10-USON (2.5x1) |
