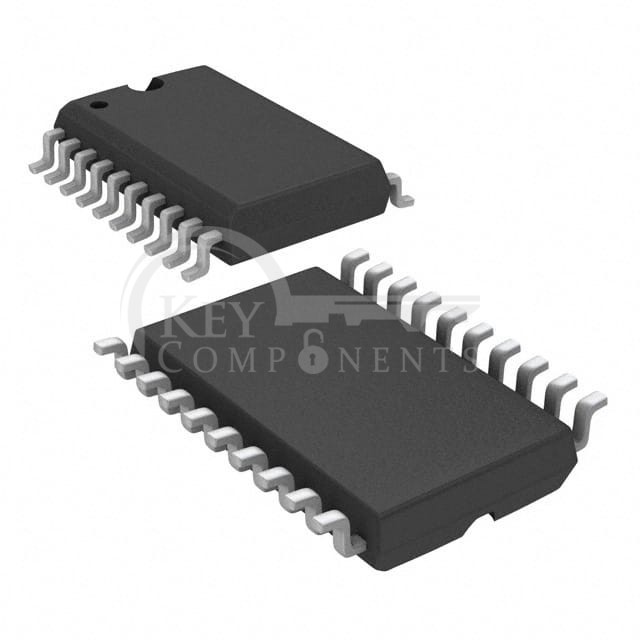

UC2638DWTR
| Manufacturer Part | UC2638DWTR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC MOTOR DRIVER 10V-36V 20SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Motor Type - Stepper: | - |
| Motor Type - AC, DC: | Brushed DC |
| Function: | Controller - Commutation, Direction Management |
| Output Configuration: | Pre-Driver - Half Bridge (2) |
| Interface: | Parallel |
| Technology: | - |
| Step Resolution: | - |
| Applications: | General Purpose |
| Current - Output: | - |
| Voltage - Supply: | 10V ~ 36V |
| Voltage - Load: | - |
| Operating Temperature: | -25°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 20-SOIC |
