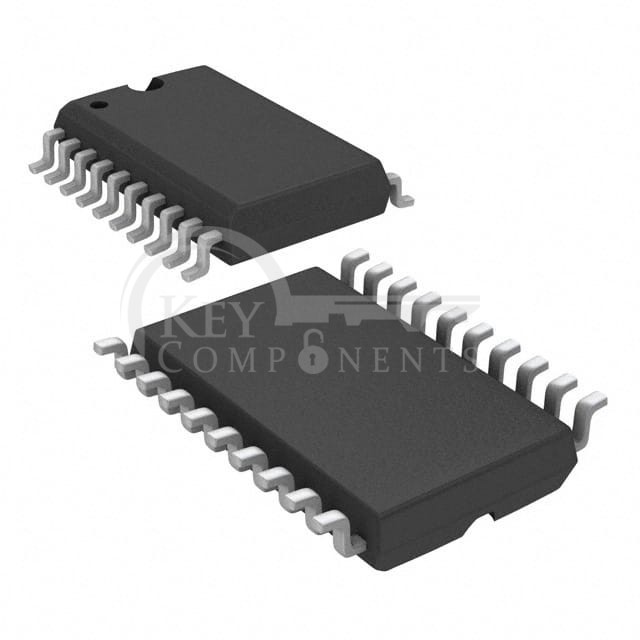

UC3638DWTR

UC3638DWTR

Manufacturer Part UC3638DWTR
Manufacturer Texas Instruments
Description IC MOTOR DRIVER 10V-36V 20SOIC
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Motor Type - Stepper:-
Motor Type - AC, DC:Brushed DC
Function:Controller - Commutation, Direction Management
Output Configuration:Pre-Driver - Half Bridge (2)
Interface:Parallel
Technology:-
Step Resolution:-
Applications:General Purpose
Current - Output:-
Voltage - Supply:10V ~ 36V
Voltage - Load:-
Operating Temperature:0°C ~ 70°C (TA)
Mounting Type:Surface Mount
Package / Case:20-SOIC (0.295", 7.50mm Width)
Supplier Device Package:20-SOIC
