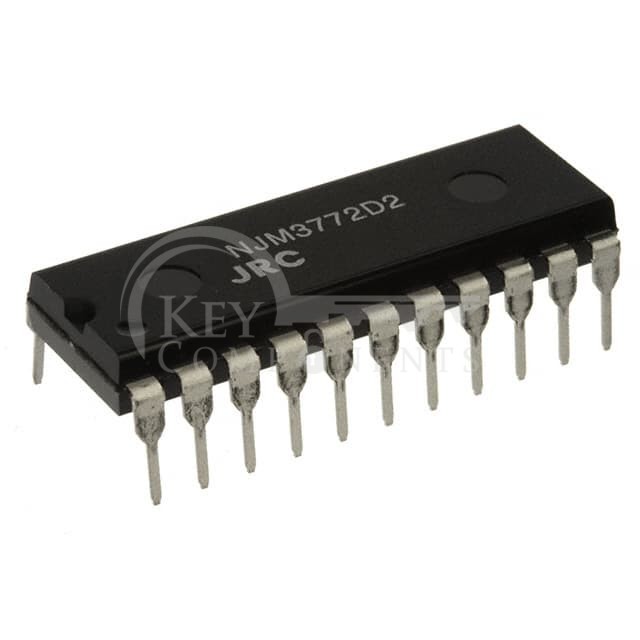

NJM3772D2
| Manufacturer Part | NJM3772D2 |
|---|---|
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Description | IC MTRDRV BIPLR 4.75-5.25V 22DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Motor Type - Stepper: | Bipolar |
| Motor Type - AC, DC: | - |
| Function: | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration: | Half Bridge (4) |
| Interface: | Parallel |
| Technology: | Bipolar |
| Step Resolution: | - |
| Applications: | General Purpose |
| Current - Output: | 1A |
| Voltage - Supply: | 4.75V ~ 5.25V |
| Voltage - Load: | 10V ~ 40V |
| Operating Temperature: | -20°C ~ 125°C (TJ) |
| Mounting Type: | Through Hole |
| Package / Case: | 22-DIP (0.400", 10.16mm) |
| Supplier Device Package: | 22-DIP |
