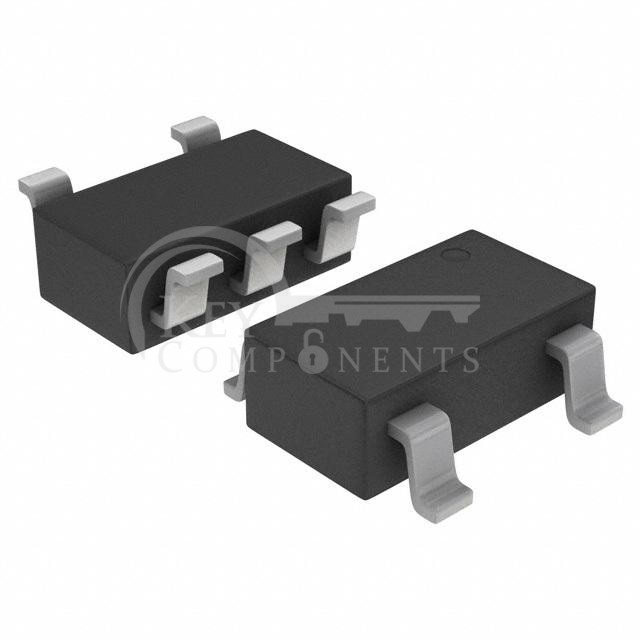

NCP5426SN13T1

NCP5426SN13T1

Manufacturer Part NCP5426SN13T1
Manufacturer onsemi
Description IC MOTOR DRIVER 12V 5TSOP
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Motor Type - Stepper:-
Motor Type - AC, DC:-
Function:Driver - Fully Integrated, Control and Power Stage
Output Configuration:High Side
Interface:On/Off
Technology:Bipolar
Step Resolution:-
Applications:Haptic Feedback
Current - Output:150mA
Voltage - Supply:12V (Max)
Voltage - Load:-
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOT-23-5 Thin, TSOT-23-5
Supplier Device Package:5-TSOP
