NCV8452STT1G
| Manufacturer Part | NCV8452STT1G |
|---|---|
| Manufacturer | onsemi |
| Description | IC MOTOR DRIVER 5V-34V SOT223 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Motor Type - Stepper: | - |
| Motor Type - AC, DC: | Brushed DC |
| Function: | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration: | High Side |
| Interface: | - |
| Technology: | NMOS |
| Step Resolution: | - |
| Applications: | General Purpose |
| Current - Output: | 1A |
| Voltage - Supply: | 5V ~ 34V |
| Voltage - Load: | 5V ~ 34V |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |

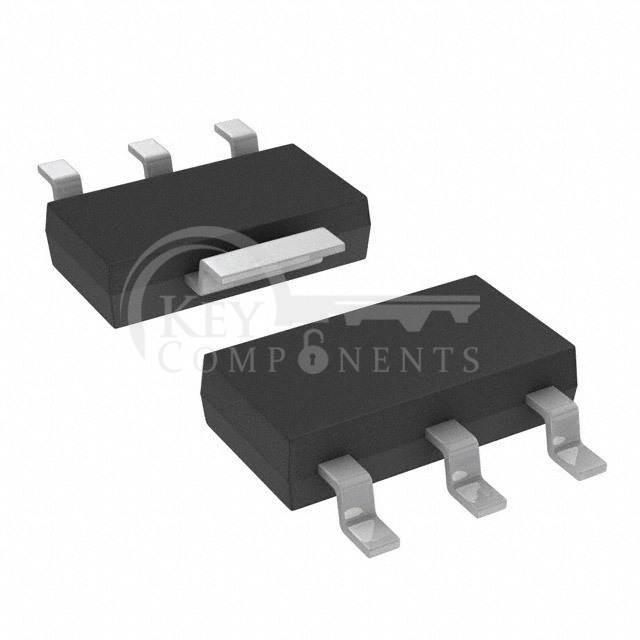

| Package / Case: | TO-261-4, TO-261AA |
| Supplier Device Package: | SOT-223 (TO-261) |
