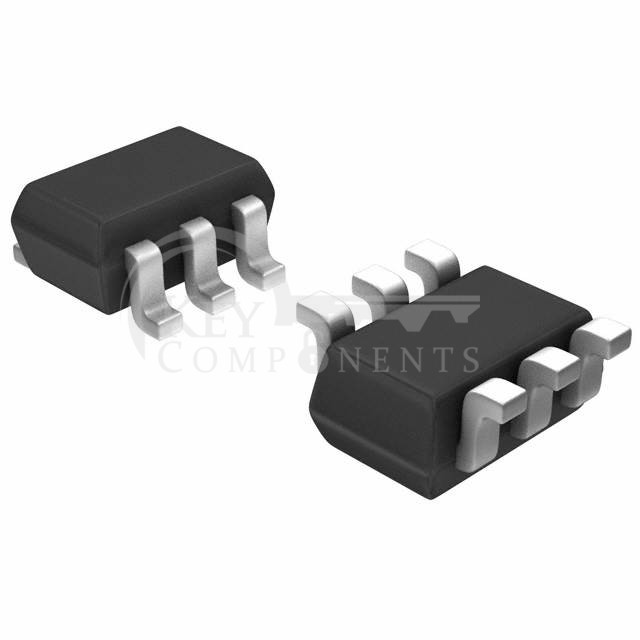

NC7SB3157P6X

Type	Description
Product Status:	Active
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	1
On-State Resistance (Max):	15Ohm
Channel-to-Channel Matching (ΔRon):	150mOhm
Voltage - Supply, Single (V+):	1.65V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	5.2ns, 3.5ns
-3db Bandwidth:	250MHz
Charge Injection:	7pC
Channel Capacitance (CS(off), CD(off)):	6.5pF
Current - Leakage (IS(off)) (Max):	100nA
Crosstalk:	-54dB @ 10MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	6-TSSOP, SC-88, SOT-363
Supplier Device Package:	SC-88 (SC-70-6)

We provide 90 days warranty;
The Pre-Shipment Inspection (PSI) will be applied;
If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
Taxes & VAT will not be included;
