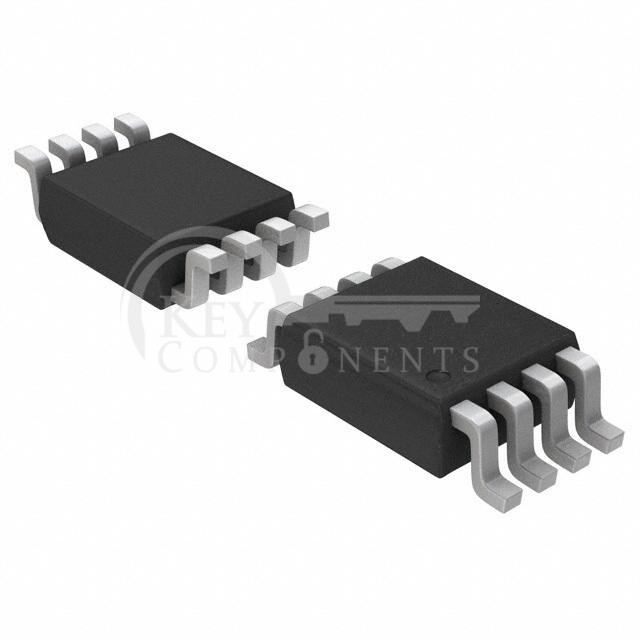

NLAS2066US

NLAS2066US

Manufacturer Part NLAS2066US
Manufacturer onsemi
Description IC SWITCH DUAL SPST US8
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Switch Circuit:SPST - NO
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:2
On-State Resistance (Max):7Ohm
Channel-to-Channel Matching (ΔRon):2Ohm
Voltage - Supply, Single (V+):1.65V ~ 5.5V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):3ns, 6ns
-3db Bandwidth:186MHz
Charge Injection:7.4pC
Channel Capacitance (CS(off), CD(off)):10pF, 10pF
Current - Leakage (IS(off)) (Max):1nA
Crosstalk:-
Operating Temperature:-55°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package:US8
