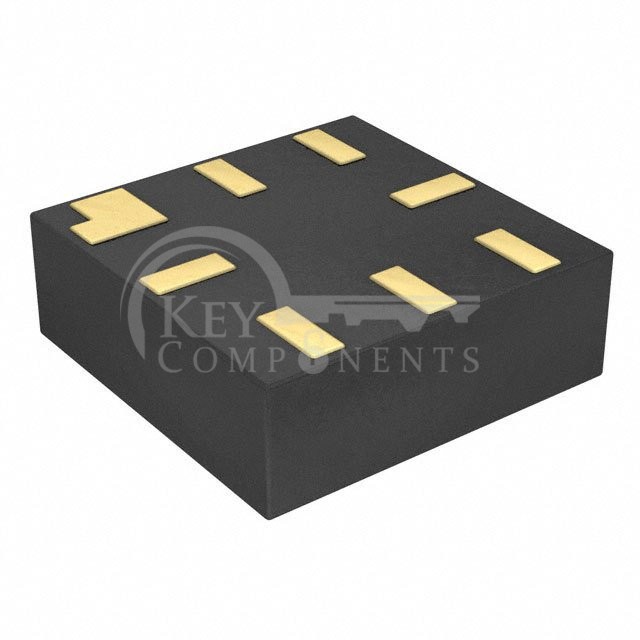

NC7WB66L8X

NC7WB66L8X

Manufacturer Part NC7WB66L8X
Manufacturer onsemi
Description IC SWITCH DUAL SPST-NO 8MICROPAK
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Last Time Buy
Switch Circuit:SPST - NO
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:2
On-State Resistance (Max):10Ohm
Channel-to-Channel Matching (ΔRon):200mOhm
Voltage - Supply, Single (V+):1.65V ~ 5.5V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):3.2ns, 4.1ns
-3db Bandwidth:300MHz
Charge Injection:-
Channel Capacitance (CS(off), CD(off)):5pF
Current - Leakage (IS(off)) (Max):100nA
Crosstalk:-70dB @ 10MHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:8-UFQFN
Supplier Device Package:8-MicroPak™
Shipping
Shipping Type Ship Fee Lead Time
DHL $20.00-$40.00 (0.50 KG) 2-5 days
Fedex $20.00-$40.00 (0.50 KG) 2-5 days
UPS $20.00-$40.00 (0.50 KG) 2-5 days
TNT $20.00-$40.00 (0.50 KG) 2-6 days
EMS $20.00-$40.00 (0.50 KG) 3-7 days
REGISTERED AIR MAIL $2.5-$7 (0.50 KG) 20-35 days
Payment
Payment method Hand Fee
Telegraphic Transfer charge US$30.00 banking fee.
Paypal charge 4.0% service fee.
Credit Card charge 4% service fee.
Western Union charge US$0.00 banking fee.
Money Gram charge US$0.00 banking fee.
Guarantees
  • We provide 90 days warranty;
  • The Pre-Shipment Inspection (PSI) will be applied;
  • If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
  • If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
  • If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
  • Taxes & VAT will not be included;
Parts Tags
NC7WB66L8X Price
NC7WB66L8X Distributor
NC7WB66L8X Manufacturer
NC7WB66L8X Technical Data
NC7WB66L8X PDF
NC7WB66L8X Datasheet
NC7WB66L8X Picture
NC7WB66L8X Image
NC7WB66L8X Part
NC7WB66L8X Stock
NC7WB66L8X Inventory
NC7WB66L8X Rfq
NC7WB66L8X Inquiry
NC7WB66L8X Online Order
Quote Request
Min. :
1
Availability :
181813 pieces
