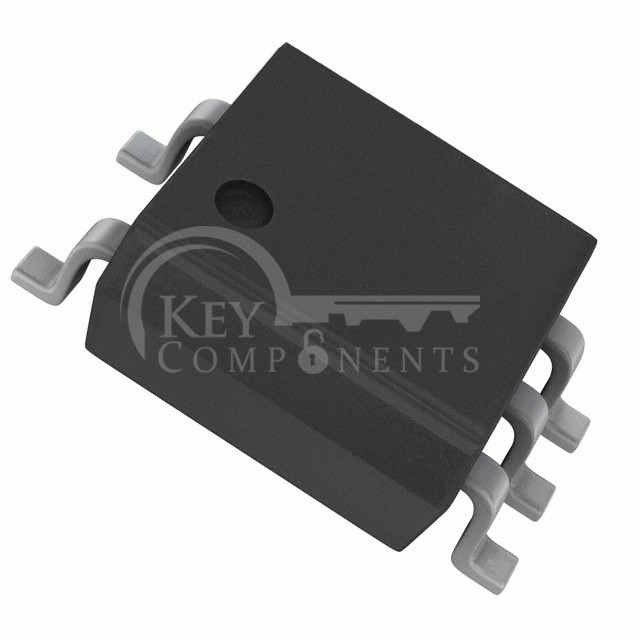

Manufacturer Part | PS9151-F3-AX |
---|---|
Manufacturer | Renesas Electronics America Inc |
Description | OPTOISO 3.75KV PUSH PULL 5SO |
Category | Isolators |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Active |
Number of Channels: | 1 |
Inputs - Side 1/Side 2: | 1/0 |
Voltage - Isolation: | 3750Vrms |
Common Mode Transient Immunity (Min): | 15kV/µs |
Input Type: | DC |
Output Type: | Push-Pull, Totem Pole |
Current - Output / Channel: | 2 mA |
Data Rate: | 15Mbps |
Propagation Delay tpLH / tpHL (Max): | 60ns, 60ns |
Rise / Fall Time (Typ): | 4ns, 4ns |
Voltage - Forward (Vf) (Typ): | 1.65V |
Current - DC Forward (If) (Max): | 20mA |
Voltage - Supply: | 4.5V ~ 5.5V |
Operating Temperature: | -40°C ~ 100°C |
Mounting Type: | Surface Mount |
Package / Case: | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
Supplier Device Package: | 5-SO |
Shipping Type | Ship Fee | Lead Time |
DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment method | Hand Fee |
Telegraphic Transfer | charge US$30.00 banking fee. |
Paypal | charge 4.0% service fee. |
Credit Card | charge 4% service fee. |
Western Union | charge US$0.00 banking fee. |
Money Gram | charge US$0.00 banking fee. |
