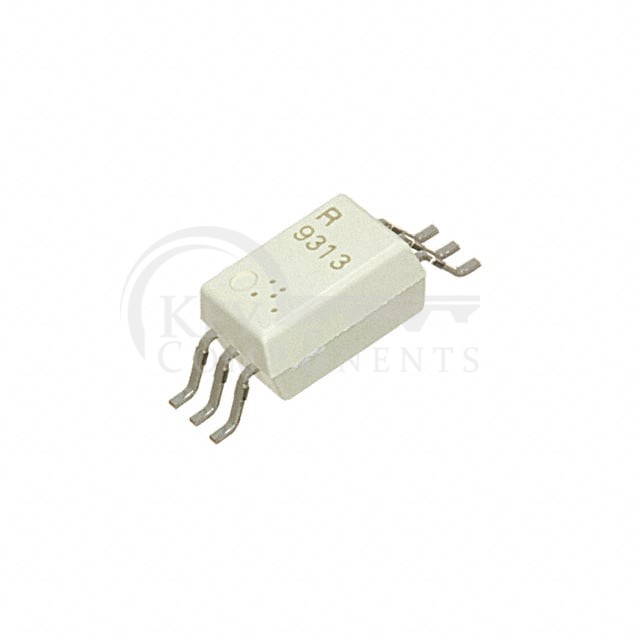

PS9317L-V-E3-AX
| Manufacturer Part | PS9317L-V-E3-AX |
|---|---|
| Manufacturer | Renesas Electronics America Inc |
| Description | HI-SPD OPTOCPLR 6PIN SDIP |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Channels: | 1 |
| Inputs - Side 1/Side 2: | 1/0 |
| Voltage - Isolation: | 5000Vrms |
| Common Mode Transient Immunity (Min): | 15kV/µs |
| Input Type: | DC |
| Output Type: | Open Collector |
| Current - Output / Channel: | 25 mA |
| Data Rate: | 10Mbps |
| Propagation Delay tpLH / tpHL (Max): | 75ns, 75ns |
| Rise / Fall Time (Typ): | 20ns, 5ns |
| Voltage - Forward (Vf) (Typ): | 1.56V |
| Current - DC Forward (If) (Max): | 20mA |
| Voltage - Supply: | 4.5V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 6-SOIC (0.268", 6.80mm Width) |
| Supplier Device Package: | 6-SDIP Gull Wing |
