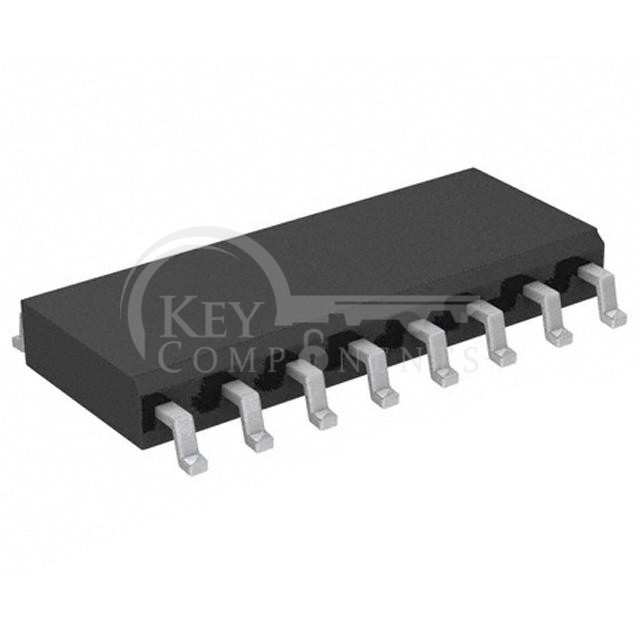

74HC4052D

74HC4052D

Manufacturer Part 74HC4052D
Manufacturer Toshiba Semiconductor and Storage
Description IC MUX 2 X 4:1 4 OHM 16SOIC
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Switch Circuit:SP4T
Multiplexer/Demultiplexer Circuit:4:1
Number of Circuits:2
On-State Resistance (Max):130Ohm
Channel-to-Channel Matching (ΔRon):4Ohm
Voltage - Supply, Single (V+):2V ~ 6V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):34ns, 32ns
-3db Bandwidth:-
Charge Injection:-
Channel Capacitance (CS(off), CD(off)):10pF
Current - Leakage (IS(off)) (Max):1µA
Crosstalk:-50dB @ 1MHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:16-SOIC
