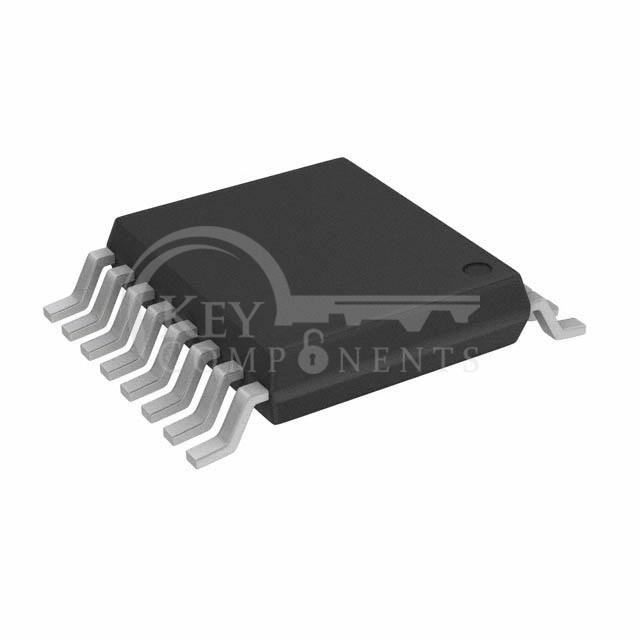

74VHC4052AFT

Manufacturer Part	74VHC4052AFT
Manufacturer	Toshiba Semiconductor and Storage
Description	IC MUX/DEMUX DUAL 4X1 16TSSOP
Category	Integrated Circuits (ICs)
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	37Ohm
Channel-to-Channel Matching (ΔRon):	5Ohm
Voltage - Supply, Single (V+):	2V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	12ns, 12ns
-3db Bandwidth:	230MHz
Charge Injection:	-
Channel Capacitance (CS(off), CD(off)):	0.5pF, 13.1pF
Current - Leakage (IS(off)) (Max):	100nA
Crosstalk:	-45dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	16-TSSOPB
