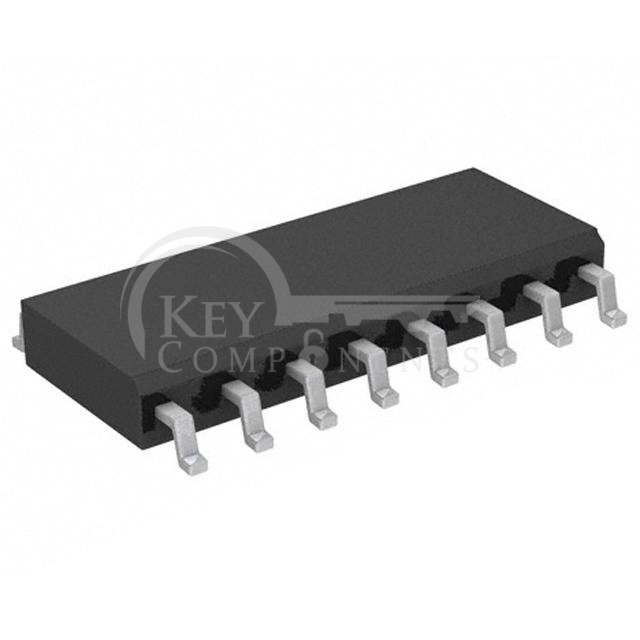

74HCT4052D

Manufacturer Part	74HCT4052D
Manufacturer	Toshiba Semiconductor and Storage
Description	IC MUX/DEMUX DUAL 4X1 16SOIC
Category	Integrated Circuits (ICs)
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Switch Circuit:	DP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	150Ohm
Channel-to-Channel Matching (ΔRon):	6Ohm
Voltage - Supply, Single (V+):	4.5V ~ 5.5V
Voltage - Supply, Dual (V±):	±1V ~ 5V
Switch Time (Ton, Toff) (Max):	60ns, 48ns
-3db Bandwidth:	180MHz
Charge Injection:	-
Channel Capacitance (CS(off), CD(off)):	3.5pF
Current - Leakage (IS(off)) (Max):	2µA
Crosstalk:	-60dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	16-SOIC
