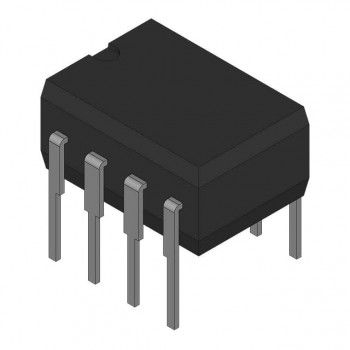

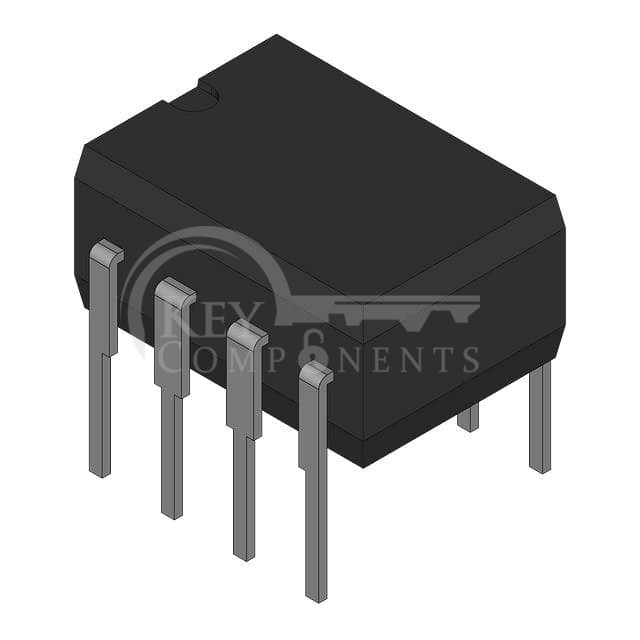

FOD3181
| Manufacturer Part | FOD3181 |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | FET OUTPUT OPTOCOUPLER |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Technology: | Optical Coupling |
| Number of Channels: | 1 |
| Voltage - Isolation: | 5000Vrms |
| Common Mode Transient Immunity (Min): | 10kV/µs |
| Propagation Delay tpLH / tpHL (Max): | 500ns, 500ns |
| Pulse Width Distortion (Max): | - |
| Rise / Fall Time (Typ): | 75ns, 55ns |
| Current - Output High, Low: | 500mA, 500mA |
| Current - Peak Output: | 1.5A |
| Voltage - Forward (Vf) (Typ): | 1.5V |
| Current - DC Forward (If) (Max): | 25 mA |
| Voltage - Output Supply: | 10V ~ 20V |
| Operating Temperature: | -20°C ~ 85°C |
| Mounting Type: | Through Hole |
| Package / Case: | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package: | 8-DIP |
| Approval Agency: | cUL, UL |
