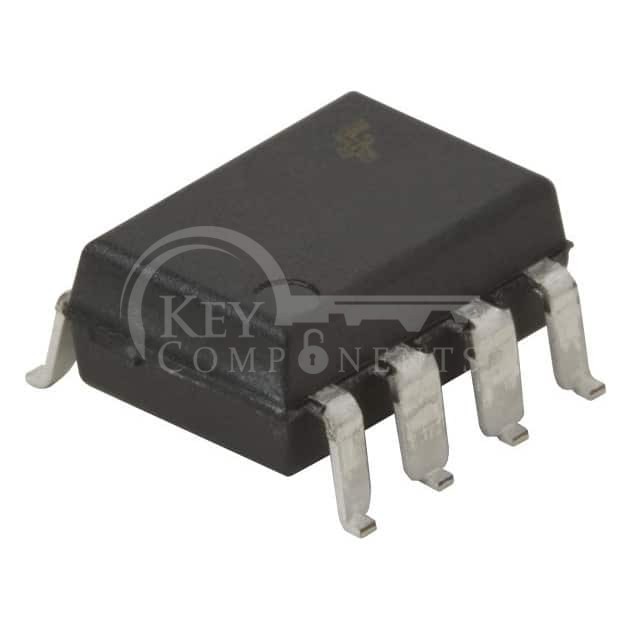

FOD3180SDV

FOD3180SDV

Manufacturer Part FOD3180SDV
Manufacturer onsemi
Description OPTOISO 5KV 1CH GATE DRIVER 8SMD
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):15kV/µs
Propagation Delay tpLH / tpHL (Max):200ns, 200ns
Pulse Width Distortion (Max):65ns
Rise / Fall Time (Typ):75ns, 55ns
Current - Output High, Low:2A, 2A
Current - Peak Output:2.5A
Voltage - Forward (Vf) (Typ):1.43V
Current - DC Forward (If) (Max):25 mA
Voltage - Output Supply:10V ~ 20V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:8-SMD, Gull Wing
Supplier Device Package:8-SMD
Approval Agency:cUL, UL, VDE
