Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Technology: | Optical Coupling |
| Number of Channels: | 1 |
| Voltage - Isolation: | 5000Vrms |
| Common Mode Transient Immunity (Min): | 15kV/µs |
| Propagation Delay tpLH / tpHL (Max): | 200ns, 200ns |
| Pulse Width Distortion (Max): | 65ns |
| Rise / Fall Time (Typ): | 75ns, 55ns |
| Current - Output High, Low: | 2A, 2A |
| Current - Peak Output: | 2.5A |
| Voltage - Forward (Vf) (Typ): | 1.43V |
| Current - DC Forward (If) (Max): | 25 mA |
| Voltage - Output Supply: | 10V ~ 20V |
| Operating Temperature: | -40°C ~ 100°C |
| Mounting Type: | Surface Mount |

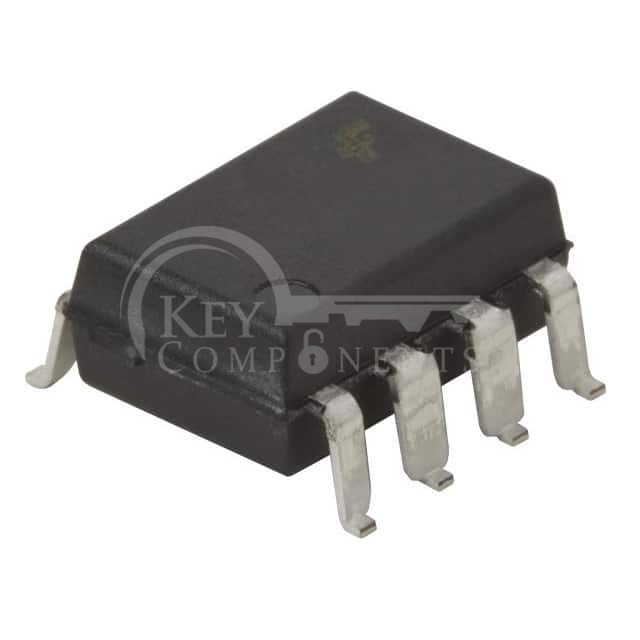

| Package / Case: | 8-SMD, Gull Wing |
| Supplier Device Package: | 8-SMD |
| Approval Agency: | cUL, UL |
