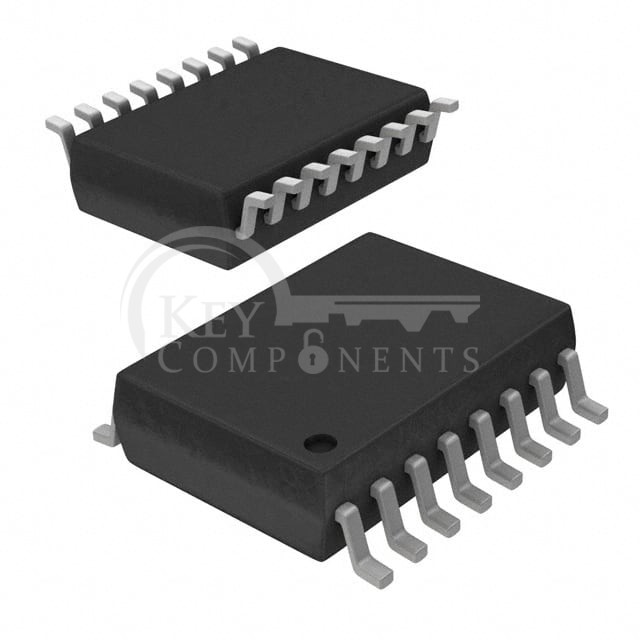

FOD8332R2

FOD8332R2

Manufacturer Part FOD8332R2
Manufacturer onsemi
Description OPTOISO 4.243KV GATE DRIVER 16SO
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:4243Vrms
Common Mode Transient Immunity (Min):35kV/µs
Propagation Delay tpLH / tpHL (Max):250ns, 250ns
Pulse Width Distortion (Max):100ns
Rise / Fall Time (Typ):50ns, 50ns
Current - Output High, Low:2.5A, 2.5A
Current - Peak Output:3A
Voltage - Forward (Vf) (Typ):1.45V
Current - DC Forward (If) (Max):25 mA
Voltage - Output Supply:3V ~ 15V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:16-SO
Approval Agency:UL
