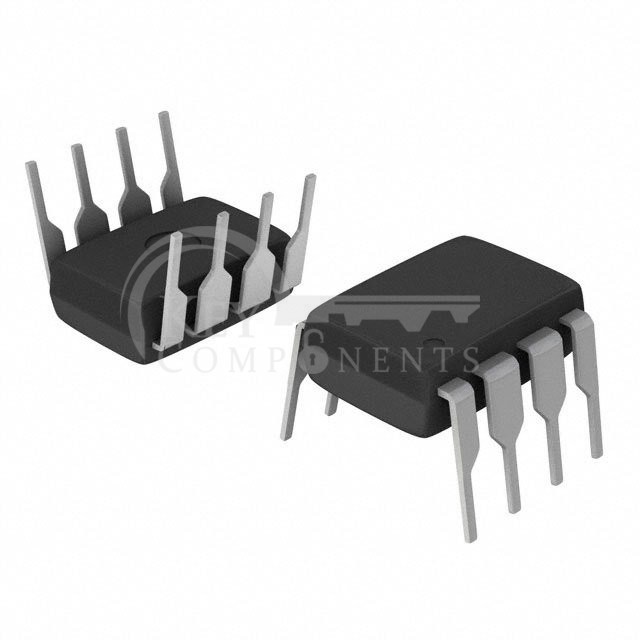

PC9D10

PC9D10

Manufacturer Part PC9D10
Manufacturer Sharp Microelectronics
Description OPTOISO 2.5KV 2CH OPEN COLL 8DIP
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):100V/µs
Input Type:DC
Output Type:Open Collector
Current - Output / Channel:16 mA
Data Rate:-
Propagation Delay tpLH / tpHL (Max):75ns, 75ns
Rise / Fall Time (Typ):30ns, 30ns
Voltage - Forward (Vf) (Typ):1.6V
Current - DC Forward (If) (Max):15mA
Voltage - Supply:4.5V ~ 5.5V
Operating Temperature:0°C ~ 70°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
